Saws

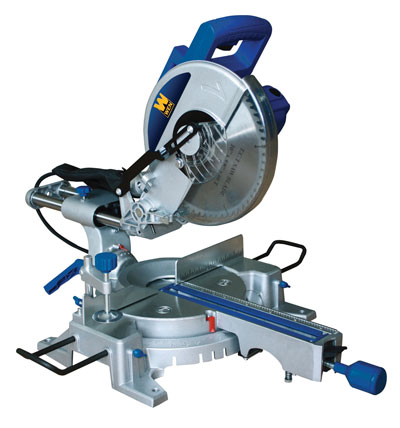

10" Sliding Compound Miter Saw
Model 70711

• Powerful 15 AMP motor
• Arbor lock for changing blade
• Bevels 45º to the left; 45º and 90º cutting angles
• 5300 rpm blade speed
• Electric blade brake for safety
• Precision machined aluminum table top with
  cast aluminum base
• Table rotation range: Left 45º-Right 45º
• 5/8" Arbor
• UL Listed

SPECIFICATIONS
Rating:     120V AC 60Hz
Input:     15 Amps
Speed:     5300 rpm
Arbor Diameter:     5/8"
Blade Type:     60-tooth carbide tip general purpose
Blade Diameter:     10"
Cutting Capacity:     At 90º:2-3/4" Deep x 12" wide
     At 45º:1-9/16" Deep x 8-1/4" wide
Positive Table Stops:     0º,15º,22.5º,30º and 45º Right and Left
Bevel Stops:     0º--45º Left only
Table Scale:     1º per scale mark
Certificate:     UL
